Cap Lining Machine
JOBO - 29

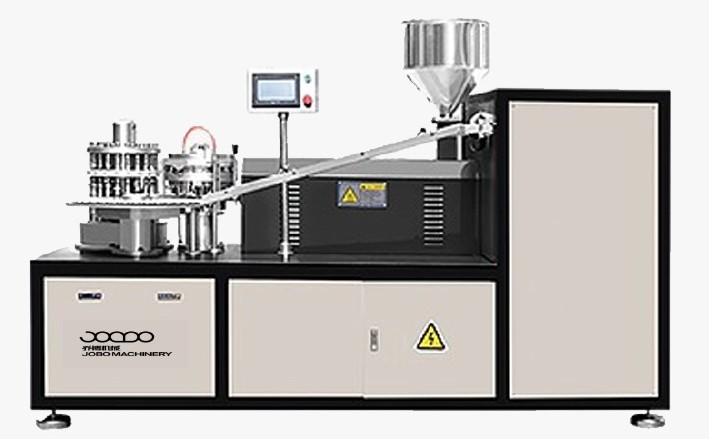

The JOBO-29 Cap Lining Machine is a high-speed and fully automatic solution for inserting liners inside plastic bottle caps. These liners are made from TPE (Thermoplastic Elastomer) pellets and are molded directly into each cap. The liners help to stop leakage and handle pressure, making sure the product stays safe and sealed inside the bottle.
This machine is designed to work with plastic caps of different sizes, especially those used for bottled water, soft drinks, juices, edible oils, and other liquid products. It is fully controlled by a PLC system, which means it runs automatically and accurately without the need for much manual effort.
Adding a liner improves the cap's sealing ability. It protects the liquid inside the bottle during transport, storage, and even in hot or cold weather. These liners are safe for food and beverages, and help reduce product damage, returns, and complaints from customers.
The JOBO Cap Lining Machine is built strong for continuous operation. It’s easy to install in your existing cap production line and doesn’t take up too much space. Its smart design makes it energy-efficient, fast, and cost-saving in the long run.
| SPECIFICATION | |
|---|---|
| TYPE | JOBO-29 |
| CAPACITY | 15000-25000 PCS/HR |
| CAP DIAMETER | 18-60 MM |
| CAP HEIGHT | 12-50 MM |
| LINEAR WEIGHT | 0.3-0.4 G/PC |
| TOTAL INSTALLATION POWER | 10 KW |
| ACTUAL PRODUCTION POWER | 5 KW |
| AIR CONSUMPTION | 0.5M3 /HR |
| VOLTAGE | 0.5M3 /HR |
| MACHINE SIZE | L4500*W1000*H1200 MM |
| MACHINE WEIGHT | 1600 KG |
Why Choose JOBO’s Cap Folding Machine?
- Makes strong, leak-proof liners inside caps
- Fully automatic with PLC control
- Safe for food, beverages, and liquid products
- Trusted by factories across 60+ countries
If you want to improve the sealing quality of your plastic caps, the JOBO-29 Cap Lining Machine is the perfect fit for your production. Reach out to Jobo India today for prices, product demos, or detailed machine specs!
